Product description

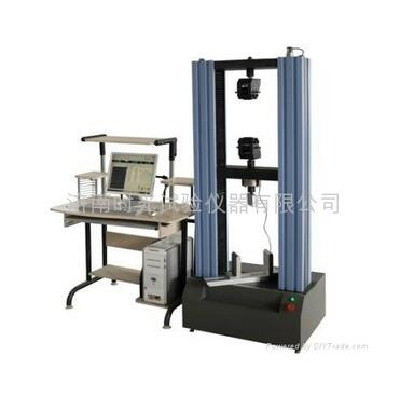

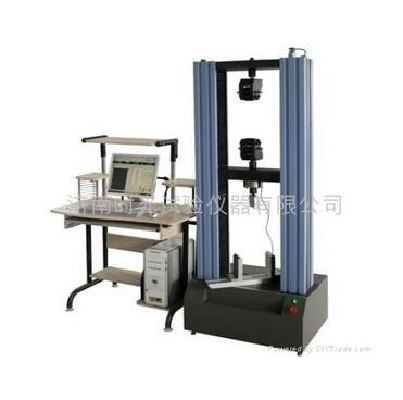

One. Ji'nan WDW-20 microcomputer control electronic universal testing machine main technical indicators:

1 maximum test force: 20KN

2 testing force measurement range: -20kN 200N; the whole process is not divided; internal and external resolution is constant.

3 test force accuracy: better than the value of the value of 1%

4 testing force resolution: 0.05%/FS

5 deformation measurement: the accuracy is 0.5%/FS.

6 speed regulation range: 0.05 - 500mm/min.

7 speed accuracy: better than 1%.

8 displacement measurement range and precision: 0-800mm; accuracy is better than 1%

9 beam maximum stroke: 800mm

10 tensile test trip: 0-650mm

11 test effective width: 370mm

12 protection function: over the maximum test force 2%-5% automatic shutdown.

13 testing machine mainframe form: door type structure.

14 Power: single phase 10% 1.5kW 220V

15 host size (length X width X height): 1000x850x1650mm

Two. Ji'nan time WDW-20 microcomputer control electronic universal testing machine applicable scope, characteristics

Ji'nan times: GB/T16491-2008 electronic universal testing machine to meet the "electronic universal testing machine" and "JJG-1986 electronic universal testing machine verification regulation"; use scope: Meet: moulded polystyrene foam board GB/T6343; DBJ01-38 GB/T8811; rigid polyurethane foam plastic GB/T6343 DBJ01-38; polystyrene insulation slurry particles JG158-2004 adhesive; DBJ01-63; interface agent DBJ01-63; precausions mortar DBJ01-63 polyurethane panels; GB/T6342; JC/T547 (test material for polyurethane panels); ceramic tile adhesive JC/T547; polymer cement polystyrene insulation board GB/T6342; caulking agent DBJ01-6; compression test method for GB8813-88 rigid foam; bending test method for rigid foam GB8812-88; C-T547-2005 ceramic tile adhesive; JG149-2003; exterior wall bythin-plastered polyphenyl plate External thermal insulation system; DBJ01-63-2002; quality inspection standard for polymer mortar for external thermal insulation wall; JG158-2004 powder polystyrene particles exterior insulation system; GB/T6343-1995 foam rubber (volume) and apparent density determination; JC 623 insulation requirements of thermal insulation mortar, insulation board, adhesives, mesh materials such as steel wire, standard test board.
