The JB-W300A microcomputer control impact testing machine working conditions 1, room temperature 10-35 C 2, relative humidity is not more than 85%, 3 non corrosive medium 4, installed in a thickness not less than 150mm on the foundation or fixed on the foundation of more than 800kg 5, the datum level is less than 0.2/1000

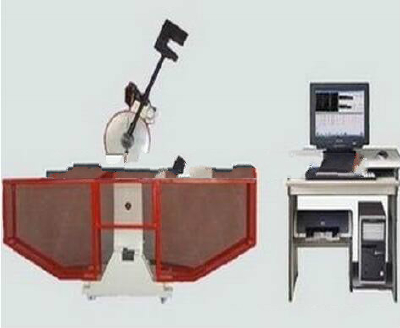

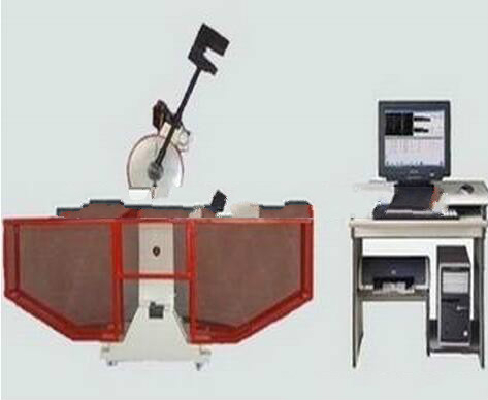

Ji'nan JB-W300A microcomputer screen display impact testing machine technical parameters

1, impact energy: 300J 150J

2, put the hammer pre lift angle: 150 degrees

3, to the point of impact pendulum shaft center distance: 750mm

4, impact speed: 5.2m/s

5, the sample bearing span: 40mm

6 round: R1 ~ 1.5mm, jaw

7, the impact of the edge of the blade: R2 ~ 2.5mm

8, impact knife thickness: 16mm

9, angle accuracy: 0.1

10, sample size: 10 x 10 x 55mm

11, size: 2124 x 600 x 1340mm

12, test machine net weight: 450kg

13, power supply: AC three phase 380V 10%/50Hz/5A

14, environmental conditions: no corrosive medium in the surrounding environment, no vibration, no strong electromagnetic interference.
