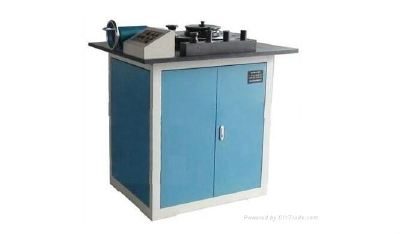

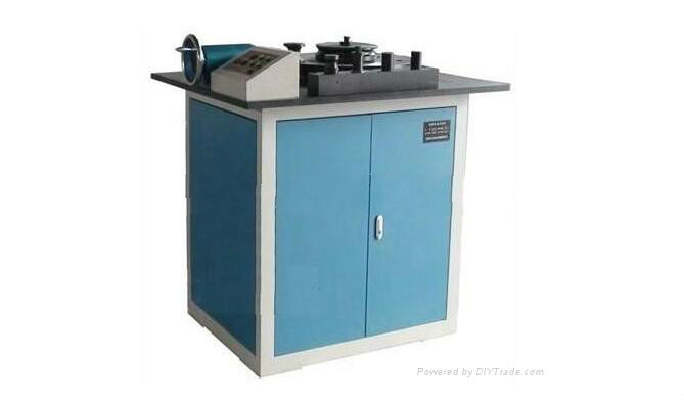

GW-40A type steel bar bending test machine is a special equipment for the plane normal and reverse bending test of the steel bar. The equipment technical parameters and indicators in line with GB/T1499.2-2007 "reinforced concrete steel - Part second: relevant provisions of hot rolled ribbed bar" and YB/T5126-2003 "reinforced concrete reinforcement bending and reverse bending test method". Widely used in metallurgy, machinery manufacturing, construction industry, engineering supervision, technical quality supervision, and other units.

This product in the accessories, the limit of safety, the replacement of wearing parts, to extend the life of the whole machine has a greater improvement.

Technical parameters of GW-40 steel bar bending testing machine:

Project technical index

Bending diameter range is 6-40mm

Forward bending angle 0 degrees - 180 degrees arbitrary set

Reverse bending angle 0 degrees - 25 degrees arbitrary set

Working speed is less than or equal to 3.7r/min

Roller center distance 165mm

The work plate diameter 580mm

Motor power 1.5kw

Random with standard curved heart set of a set of

Machine outline dimension 1200 * 1000 * 960 (mm)

Machine weight 1600kg

Power three phase 1.5KW 380V

GW-40A steel bar bending test machine model is complete, price concessions, GW-40 steel bending test machine manufacturers direct sales, professional manufacturing, technical leadership.
